| Brand Name: | hui life |
| Model Number: | sh17 |
| MOQ: | 30 |
| Price: | 9 dollars |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T |

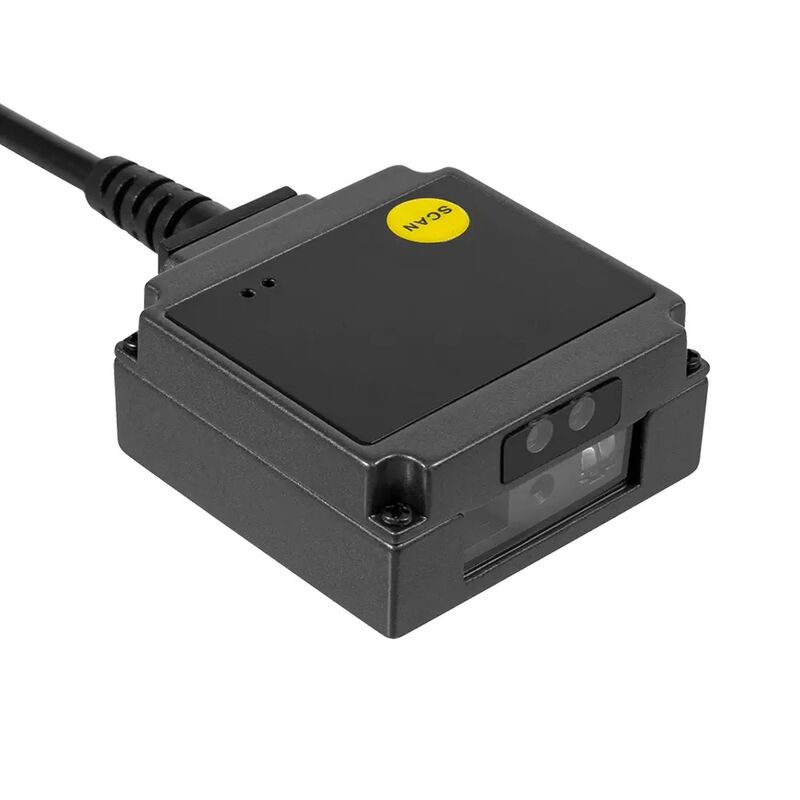

Fast Response Hands Free Barcode Scanner Wireless Charging Desktop Auto Scanner for Supermarket Shop Clinic Restaurant Scenic Spot Logistics Warehouse factory direct
| Product Specification | YHD-M200D 2D CMOS Barcode Scanner Module |
|---|---|
| Imaging Sensor | CMOS |
| Optical Source | 620nm Visible red light diode |
| Trigger Mode | Manual trigger,Auto-Continuous,Auto-Induction |
| Indication | Buzzer & LED |
| Resolution Ratio | 640*480 CMOS (300,000 pixel) |
| Decoding Speed | 500times/second |
| Interface | RS232,USB,TTL,Micro USB |
| Resolution | 4mil |
| Weight (with cable) | 127g |
| Dimensions(scanner) | 46.2*45.4*20.1 mm (Length x Width x Height) |
| Minimum Contrast | ≥ 20% |
| Decoding Capability | 1D: UPC/EAN,with complementary UPC/EAN,Code128,Code39, Code 39Full ASCII,Coda bar,industrial /Interleaved 2 of 5 |
| Code93,MSI,Code11,ISBN,ISSN,China post,GS1 Databar,etc. 2D: PDF417 QR Aztec DataMatrix Maxicode MicroPDF417 etc | |
| Depth of field | 40-120mm Code 39(5MIL) |
| 20-300mm EAN-13 ( 13MIL) | |
| 25-340mm Code 39(20MIL) | |
| 15-500mm Code 39(40MIL) | |
| 20-150mm PDF417(6.8MIL) | |
| 15-250mm QR Code(20MIL) | |
| Scan Angle | Roll 360° , Pitch± 65° , Skew ±60° |
| Current | Working :3.3-5Vx180mA Stand-by : ≤70mA |
| Working Voltage | DC3.3V |
| Storage Temperature | -40°C ~ 70°C / -40°to 158°F |
| Working Temperature | -20°C ~ 60°C / -4°to 140°F |
| Relative Humidity | 0%-95%Relative humidity, no condensation state |
| Drop test | 2m fall to concrete |
| Certificate | CE,FCC,RoHS,IP54 |
