| Brand Name: | hui life |
| Model Number: | sq14 |
| MOQ: | 10 |
| Price: | 10 dollars |
| Delivery Time: | 5-8work days |
| Payment Terms: | T/T |

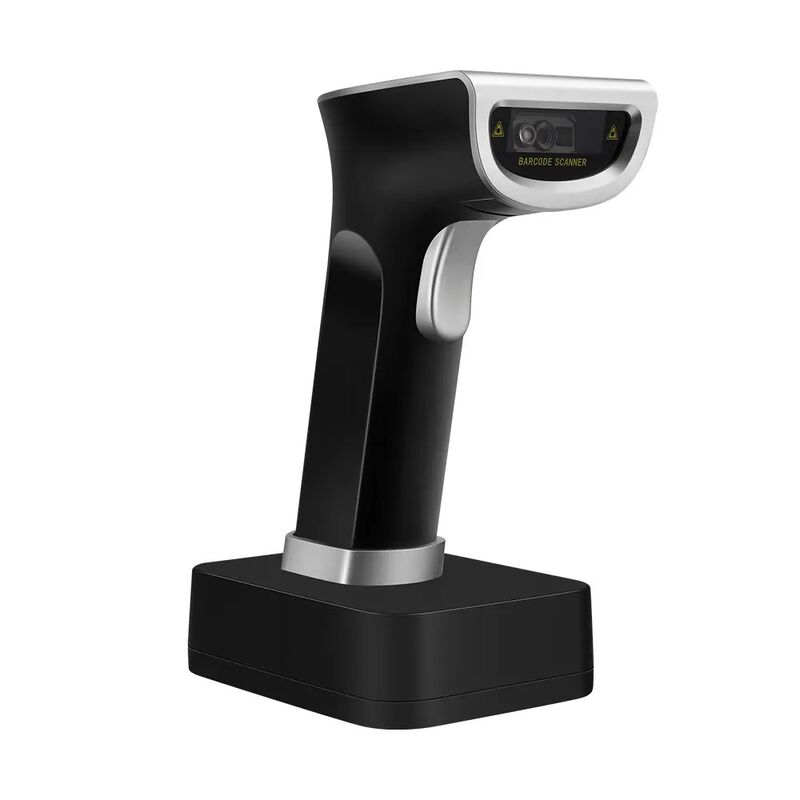

1D 2D Wireless Handheld Barcode Scanner Factory Direct Automatic Barcode Reader for Supermarkets Hospitals Scenic Spots Accurate Scanning Performance
①【Scanning Capability】
2D Barcode Support: Ensure the scanner can read various 2D barcodes, such as QR codes, Data Matrix, and PDF417.
1D Barcode Support: Most 2D scanners also read 1D barcodes (like UPC, EAN).
②【Wireless Connectivity】
2.4G Wireless: Check if the scanner uses Bluetooth or Wi-Fi for wireless connectivity. Bluetooth is common for short-range connections, while Wi-Fi can offer more flexibility.
③【Base Station】
Charging Dock: A base that doubles as a charging station is convenient for keeping the scanner powered.
Data Transmission: Some bases can also transmit data to a computer or POS system.
Scanner parameters:
| Scanner parameters: |
| Transmission mode: 2.4G wireless |
| Storage:100,000 barcodes |
| Distance:100m |
| CPU:ARM 32-bit Cortex |
| Sensor:640*480 CMOS |
| Global shutter exposure |
| Optional Sensor:CMOS 1280*800 |
| Resolution :4mil |
| Interface:USB ,USB-COM |
| Battery: 3.7V-2600mAh |
| Indication:Buzzer & LED |
| Decoding speed:500scans/sec |
| Field of View:36 °(H) X27 °(V) |
| Button life :8000,000 times |
| Printing contract :≥25% |
| Depth of |
| Field |
| 13mil-EAN13 |
| 50-345mm |
| 5mil-code39 |
| 55-115mm |
| 20mil-QR |
| 40-300mm |
| 10mil-PDF417 |
| 40-280mm |
| Decode Capability: |
| 1D Codes:UPC-A ,UPC-E ,EAN-8 ,EAN-13 ,Code 128 ,Code 39 ,Code 93, Code 11 ,Interleaved 2 of 5,Matrix 2 of 5,Standard 2 of 5,Coda bar,MSI Plessey, RSS ,etc. |
| 2D Codes: QR Code ,Micro QR ,Data Matrix ,PDF417 ,Micro PDF417 ,Aztec, Maxicode ,Hanxin Code. |
| Light Source:(Aim) red LED, (Illumination)white LED |
| Trigger Mode:Handheld,Continuous,Auto-Induction |
| Scanning angle:Angle of rotation360° , inclination± 55° , declination ± 55° |
| Working current:3.3Vx200mA |
| Standby current :18uA-5mA |
| Working time :7 to 10 days |
| Charging power:5V-400mA |
| Anti inference:0-100000Lux Max |
| Relative Humidity: 0 ~ 95% |
| Certificate :CE ,FCC ,RoHS ,IP54 |
| Drop test :2m |
